DTF330XP printer for textile printing transfer printing | Print format DIN A3+

PrintboxSKU: 1045145098

Sale price€4.995,00

Tax included Shipping calculated at checkout

In stock

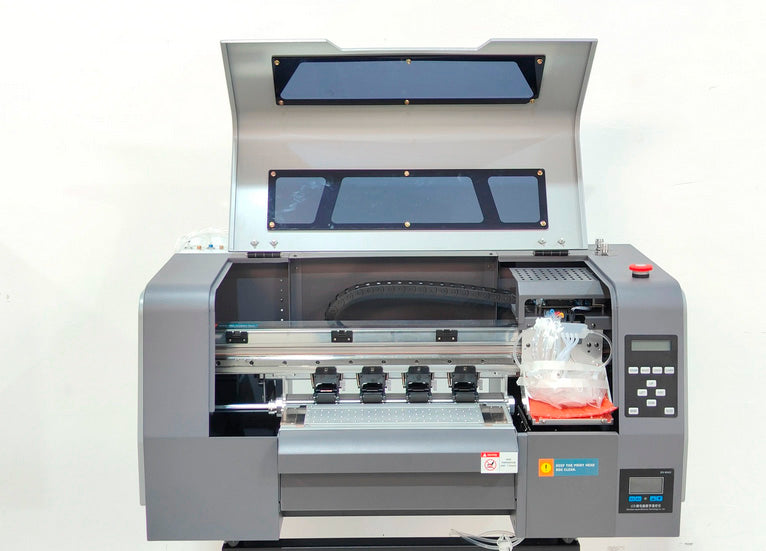

DTF330XP complete system for transfer printing up to A3+

Product description

Our DTF330XP roll printing system is the perfect solution for high-quality To produce transfer films up to DIN A3 oversize. The printer is equipped with two Epson XP600 print heads and runs on CMYK and white.
After printing, the film can be processed manually or automatically, depending on the equipment available. The device has a modular structure. All components are easy to access and usually require no tools, which makes maintenance and system care much easier.
The printing system is suitable for DTF beginners or those switching from small to medium volumes who want to switch to a higher quality system.

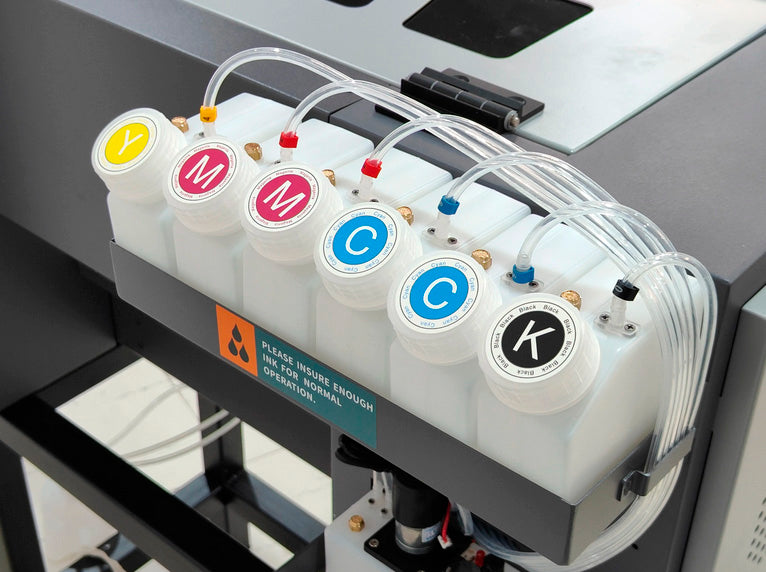

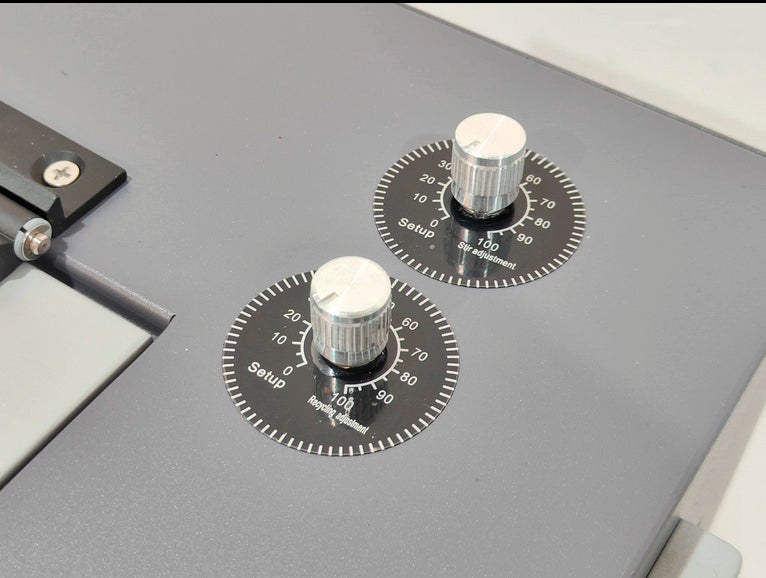

Refilling the inks is easily accessible and can be done during operation without interrupting the printing process. A circulation system for white ensures a constant flow of white ink and prevents the pigments from settling.

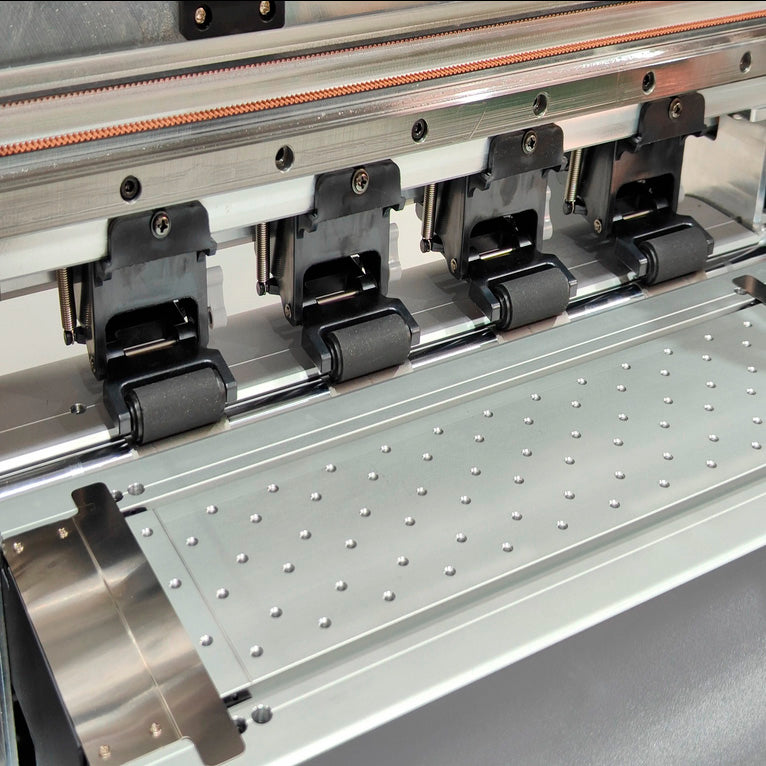

The integrated film suction keeps the film flat during the printing process. This means that material crashes are almost impossible. The two built-in heaters (preheating and postheating) enable high ink application and high print quality.

Product details DTF330XP

Max print width: 37cm
Print media: DTF PET film/or paper
Printhead: 2x Epson DX11 / XP600
Printer connection: Gigabite LAN
RIP Software: Devstudio8, CadLlnk PrintFactory (optional)
Operating system: Windows7/ 10/ 11
Operating conditions: 15-30 degrees Celsius, 35-65% Humidity
Resolution: 1440/ 2160 dpi
Speed: approx. 9sqm/hour 6pass / approx. 7sqm/hour 8Pass

Front and rear film heater, platform suction unit adjustable, inks White ink circulation and stirring unit, alarm system for Ink shortage, print head cleaning function, ink station with
automatic lifting function, LCD and multifunctional control keyboard, Platform suction adjustable

Electrical connection: 220V, 50/60Hz, 15A, 3KW
Dimensions: 1210x650x716mm, incl. Packaging

Weight: 115kg/gross

Scope of delivery:

Our offer includes the DTF330XP printer itself, including the 2x XP600 printheads and the shelter. The printer is delivered by a shipping company and can also be put into operation by “non-experts”. The device is delivered pre-assembled. Printheads, dampers, printhead cables are already installed. Only the shelter needs to be assembled if necessary.

The guarantee is 12 months. Excluded are consumables and all ink-carrying parts.

RIP software is not included in the scope of delivery and can be ordered as an option.
The same applies to consumables such as DTF film, ink and granules.
