Description

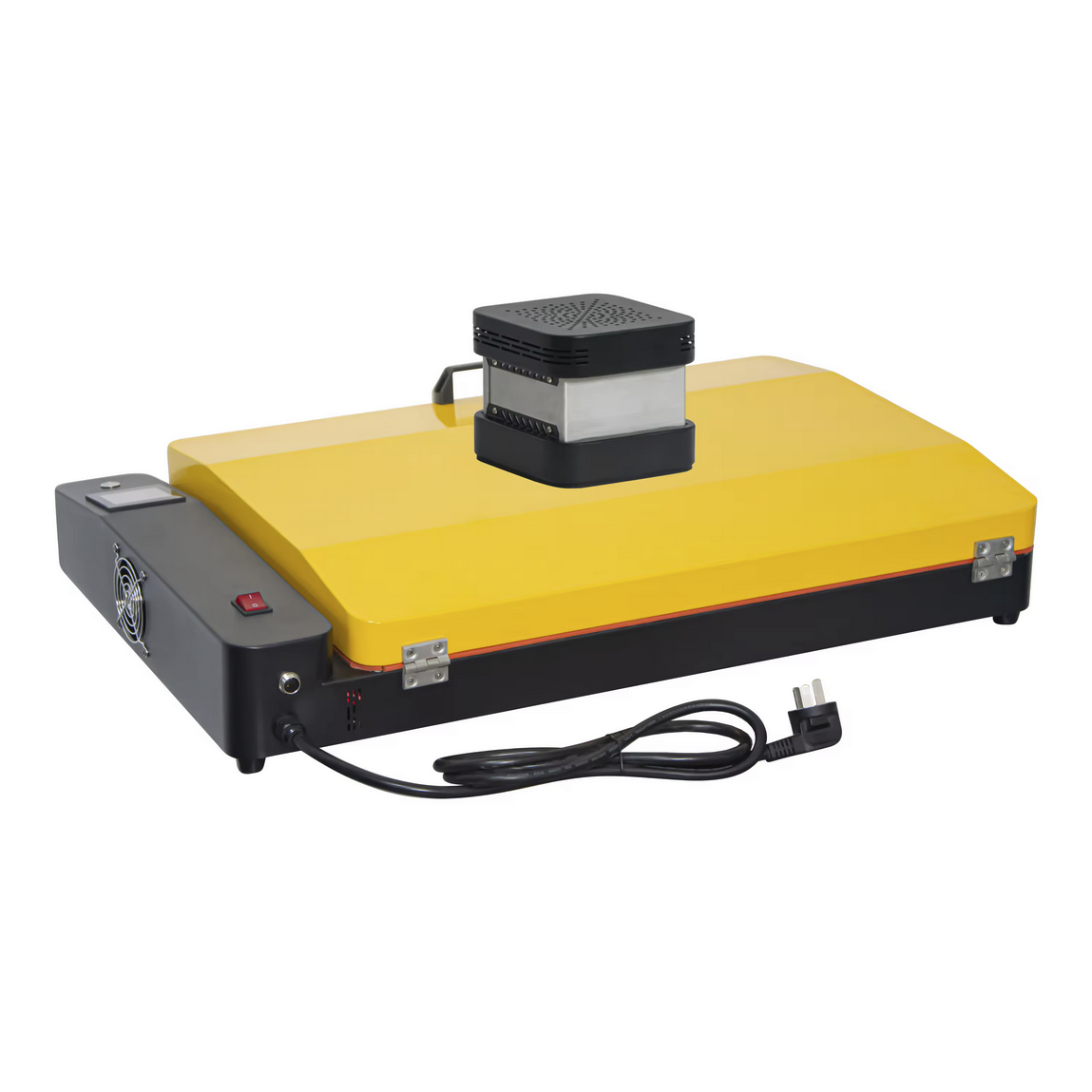

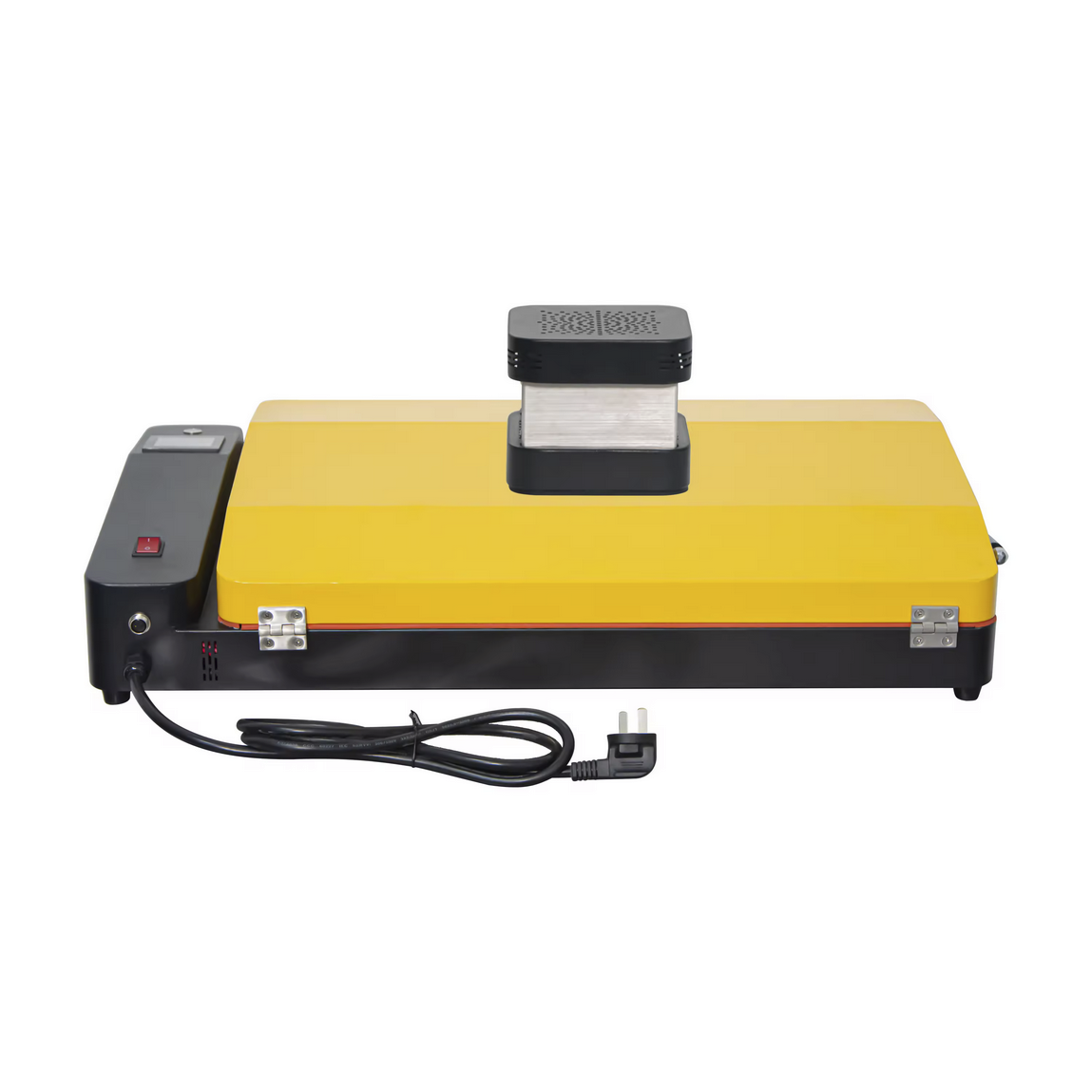

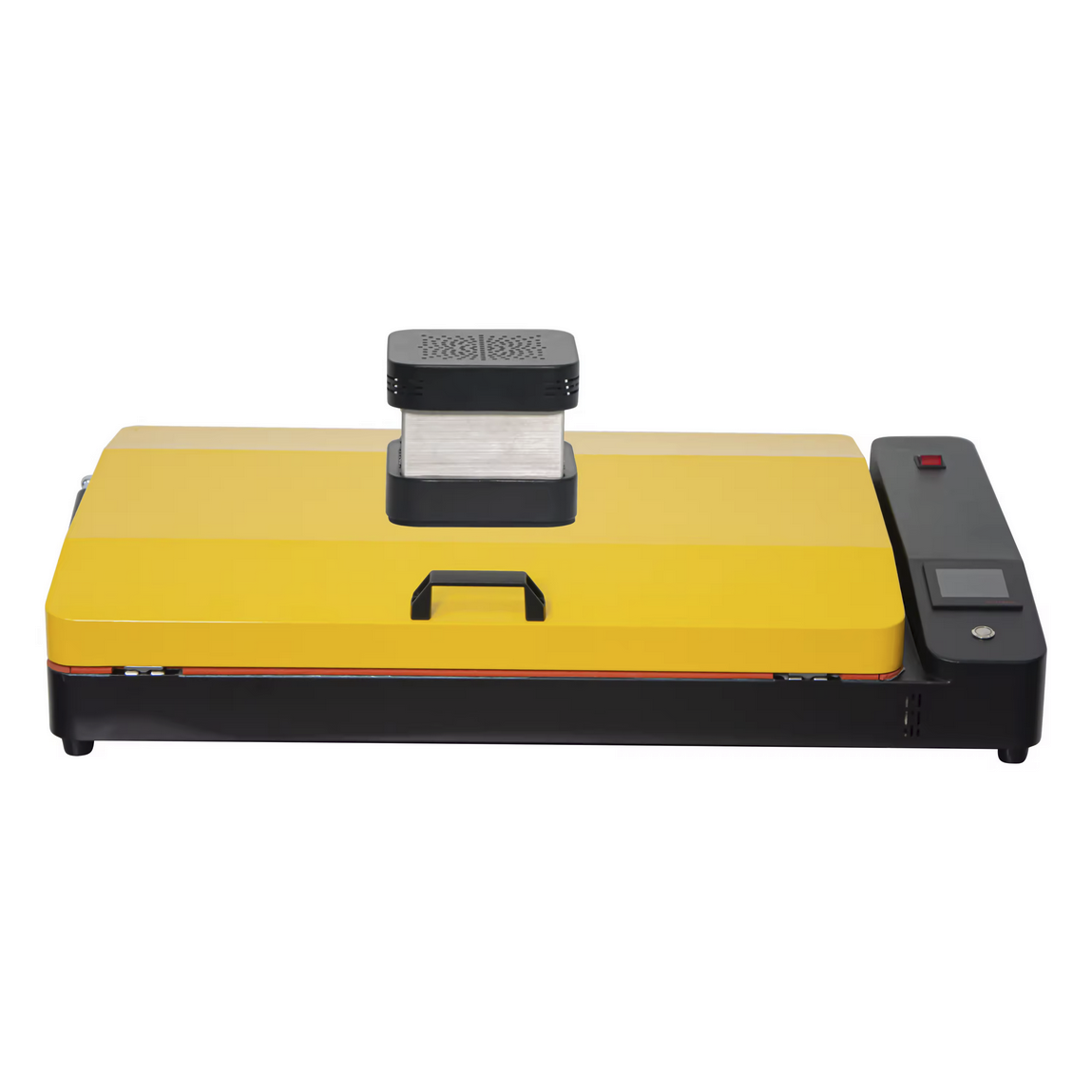

Quickdry Professional gelling oven for DTF films up to 40x60cm!
Product description
Operating instructions
Here you will find a description of the DTF workflow
Product description
The new Quickdry Professional oversized gelling oven is here!
The oven processes DTF films in oversized formats up to a maximum size of 40x60cm!
With
The Quickdry Professional oven can be used to make your oven easy and comfortable
Gel DTF films with our VISCOFLEX transfer adhesive. The oven impresses with its modern design, easy operation and compact design.
The desired temperature and gelling time can be set using the integrated control .
A novelty are the 6 (!) infrared heating tubes built into the lid. This means the oven is ready for use in a short time.
The heat distribution is optimal, so that the films quickly and
be gelled evenly. The drawer system allows you to...
Lightly load the oven and put the gelled transfer films back
remove. Product details
- Transfer oven for DTF films
- Max. usable area 40x60cm
- Drawer system for easy loading of the oven
- 6 heating tubes ensure even heat distribution
- Short gel times, approx. 15-20 seconds. at 150 degrees Celsius
- Easy to use with temperature and time preselection
- Start/Stop button
- Compact design, small footprint
- Stable, robust metal housing
- Power supply: 220V
- Power consumption: approx. 540W
- Dimensions: 89x58x18cm (LWH)
- Weight: approx. 22.5 kg
- Temperature adjustable from 100 - 170° C
- Time adjustable from 0 - 999 seconds
- Drying type: infrared
- Working environment: temperature 18-28°C, 40-70% humidity
- Optional air filter recommended for continuous operation
Operating instructions The desired time and temperature are set separately via a foil display.
The gelling process is started with the start/stop button. When the countdown is finished, a signal sounds, which can be ended with the start-stop button.
The gelling process is started with the start/stop button. When the countdown is finished, a signal sounds, which can be ended with the start-stop button.
